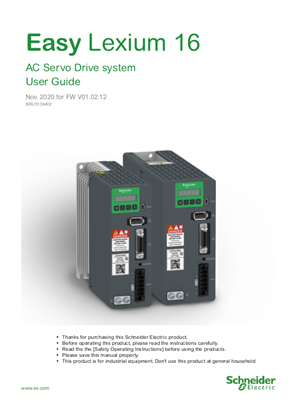

Easy Lexium 16, AC Servo Drive system - User Guide

The servo system composed of LXM16D series servo drive and BCH16 series AC servo motor is a member of the Lexium 16 family designed to suit pulse control and offer high performance, simple interface and easy operation. This series include a variety of 0.1 kW~1.5 kW servo drives and AC servo motors. Incorporating real-time adaptive tuning and adaptive notch filter, this series of servo drives are designed with the selection and automatic switchover of stiffness levels to address various requirements on the stability of low-stiffness machine and the high speed and accuracy of high-stiffness machine, in addition with the AC servo motor equipped with 2500-line Incremental encoder, the servo system achieves the simplicity of interface and the simple operation of machinery and positioning, thereby suiting a wide range of machines. This manual is prepared for you to make correct and effective use of LXM16D series servo drive system with above-noted merits.
